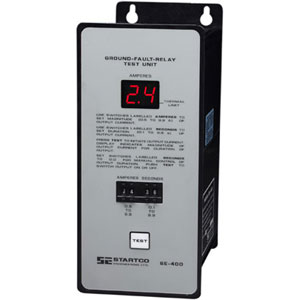

Functions:
Provides current to test trip pickup level, time, and coordination of ground-fault protection
Provides current for testing other types of relays
Simplifies scheduled testing procedures
Features:
Tests the entire ground-fault circuit including CT's, wiring, ground-fault relay, and interrupting device
Current range is 0.5 to 9.9 A
Duration range is from 0.1 to 9.9 s, or continuous
Large LED display indicates current-output level
Portable unit available
One SE-400 can test several ground-fault devices
Multiple wraps through the ground-fault CT can provide additional current levels
Remote test input
Conformally coated circuit boards
Five year warranty
Data Sheets and Installation Instructions:
SE-400 Data Sheet
SE-400 Panel-Mount Installation Details
Hoja de datos SE-400 (Español)
SE-400 Instalacion con Montaje de Panel (Español)
Typical Applications:
Used on MCC's, substations, portable substations, central distribution panels (CDP's), switchboards, and test benches to verify relay operation
|
|
